The Best and Advanced Metal Shredder

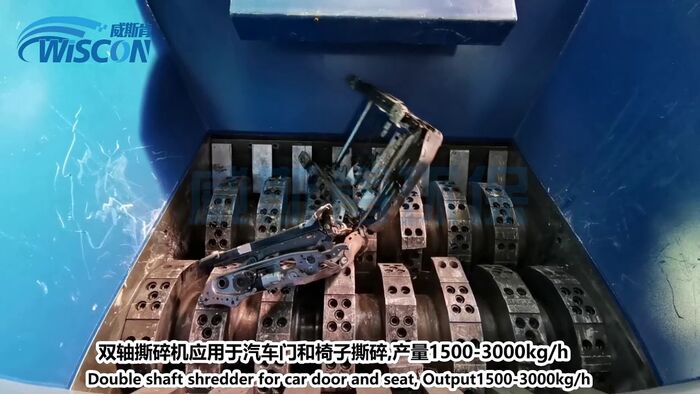

Another excellent project with Nissan in China. Car doors and seats are broken down into metal pieces and stripes. Wiscon Envirotech produces metal shredder,...

Under the new solid waste regulations, paint buckets are a big no-no to many recycling plants in China. Using Wiscon shredder, bulky buckets reduce to small ...

The simplest way to shred electronics into pieces. Using P260 with a 40mm diameter screen, the result is amazingly satisfying. Wiscon Envirotech produces shr...

Features
Scrap metal recycling system is a series of equipment for volume reduction and separation of metal waste. The system is ideal for recycling resources and reclaiming valuable metals in many different variations and sizes. Wiscon enables you to recycle not only light metals but also aluminum, brass, copper, lead, stainless steel, titanium and zinc.

Primary Shredding

No matter small or bulky, scattered or briquetted, ferrous or non-ferrous your waste is, the very first step is to process the scrap metals in double shaft shredder. Determined by metal hardness and composition, one out of three types of robust rotor is pre-selected to accomplish your task.

The low number of turns allows you to get a very high torque with super low power consumption. Gas nitriding is adopted to enhance surface hardness and anti-wearability of blades. The robust housing is machined in one setup for high accuracy and stiffness. Our technology allows you to make the most out of each cut, getting uniform shredded pieces.

Separation and Reclamation

After shredding, scrap metal recycling system distinguishes the non-ferrous and the ferrous. Magnetic belt conveyor sucks up all the ferrous, followed by eddy current separator taking out all the non-ferrous. This leaves materials such as plastics and paper remained in the system, while the valuable metals are recycled.

In short, scrap metal recycling system breaks down scrap metal into pieces. Next, separate the metals from plastics and impurities. The final products are highly valued and pure.

Workflow
Shredder – Vertical Granulator – Magnetic Separator – Eddy Current Separator – Collection Bin

Before and After
Once a recycling system is finished, Wiscon tests it with similar materials to show capability and output. Seeing is believing, so you are greatly welcome to present and witness with us on site. If you cannot make in person, detailed videos and numerous photos will be prepared for you to exam.

Two Shaft Shredder Application
RDF (Refuse-Derived-Fuel): MSW, industry waste, wood, paper, tires, plastics, carpet, textiles
Metal Scraps: Aluminum, ferrous, non-ferrous, steel drums, waste automotive
Electronics: WEEE, electronic equipment, waste household appliances
Plastic: Drums, lumps, films

Introduction
DL series large two shaft shredder is designed for higher shredding requirements. DL equips with sturdy welded steel construction, increased size of crushing chamber, optimized feeding hopper, greater torque, realizing a higher throughput. This series is effectively processing tough and bulky materials and materials in bale (with slight foreign objects). Because shredder is screenless, it is often used as primary shredding, and the blade thickness determines shredded particle size.

Features
Knife adopts high alloy steel 42CrMo with high strength and toughness.
Blade of D-rotor and OM rotor adopts D2 steel, and knife adopts 42CrMo steel.
Main electrical components are trusted brands such as Siemens and Schneider.
Auto-reverse system re-orients rotor direction when motor overload & material jam.
Pusher Ram is optional for hollow and gigantic materials.
